STM32 LCD Display

常常在手持量測工具的開發中,會使用到LCD來顯示量測資訊，如電壓等，在這邊就簡單的介紹我之前用來開發某量測工具使用LCD的控制方式!

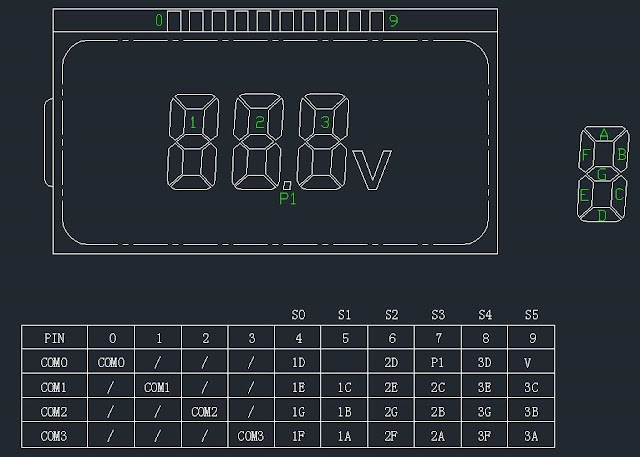

由於並非所有STM32 MCU都有LCD顯示的功能，因此這邊選擇STM32L100C6U6A為例，假設要來點亮88.8V這樣字符的LCD，88.8V需要23個點，假設選擇4COMx6SEG共有24 pixels可以滿足23個點的需求，所以會占用STM32L100C6U6A 10 pin I/O(4COM + 6SEG)，LCD設計圖如下:

#define LCD_SEG0_Pin            GPIO_Pin_1

#define LCD_SEG0_GPIO_Port      GPIOA

#define LCD_SEG1_Pin            GPIO_Pin_2

#define LCD_SEG1_GPIO_Port      GPIOA

#define LCD_SEG2_Pin            GPIO_Pin_3

#define LCD_SEG2_GPIO_Port      GPIOA

#define LCD_SEG3_Pin            GPIO_Pin_6

#define LCD_SEG3_GPIO_Port      GPIOA

#define LCD_SEG4_Pin            GPIO_Pin_7

#define LCD_SEG4_GPIO_Port      GPIOA

#define LCD_SEG5_Pin            GPIO_Pin_0

#define LCD_SEG5_GPIO_Port      GPIOB

#define LCD_COM0_Pin            GPIO_Pin_8

#define LCD_COM0_GPIO_Port      GPIOA

#define LCD_COM1_Pin            GPIO_Pin_9

#define LCD_COM1_GPIO_Port      GPIOA

#define LCD_COM2_Pin            GPIO_Pin_10

#define LCD_COM2_GPIO_Port      GPIOA

#define LCD_COM3_Pin            GPIO_Pin_9

#define LCD_COM3_GPIO_Port      GPIOB

void LCD_Config(void)

{

     LCD_InitTypeDef LCD_InitStructure;

     GPIO_InitTypeDef GPIO_InitStructure;

RCC_AHBPeriphClockCmd(RCC_AHBPeriph_GPIOA | RCC_AHBPeriph_GPIOB, ENABLE);

     GPIO_PinAFConfig(GPIOA, GPIO_PinSource8, GPIO_AF_LCD);  // com0

GPIO_PinAFConfig(GPIOA, GPIO_PinSource9, GPIO_AF_LCD);  // com1

GPIO_PinAFConfig(GPIOA, GPIO_PinSource10, GPIO_AF_LCD); // com2

     GPIO_PinAFConfig(GPIOB, GPIO_PinSource9, GPIO_AF_LCD);  // com3

GPIO_PinAFConfig(GPIOA, GPIO_PinSource1, GPIO_AF_LCD);  // seg0

GPIO_PinAFConfig(GPIOA, GPIO_PinSource2, GPIO_AF_LCD);  // seg1

GPIO_PinAFConfig(GPIOA, GPIO_PinSource3, GPIO_AF_LCD);  // seg2

GPIO_PinAFConfig(GPIOA, GPIO_PinSource6, GPIO_AF_LCD);  // seg3

GPIO_PinAFConfig(GPIOA, GPIO_PinSource7, GPIO_AF_LCD);  // seg4

GPIO_PinAFConfig(GPIOB, GPIO_PinSource0, GPIO_AF_LCD);  // seg5

     GPIO_InitStructure.GPIO_Pin = LCD_SEG0_Pin | LCD_SEG1_Pin |

     LCD_SEG2_Pin | LCD_SEG3_Pin | LCD_SEG4_Pin | LCD_COM0_Pin |

     LCD_COM1_Pin | LCD_COM2_Pin;

     GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;

     GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;

     GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;

     GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL;

     GPIO_Init(GPIOA, &GPIO_InitStructure);

     GPIO_InitStructure.GPIO_Pin = LCD_SEG5_Pin | LCD_COM3_Pin;

     GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF;

     GPIO_InitStructure.GPIO_OType = GPIO_OType_PP;

     GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;

     GPIO_InitStructure.GPIO_PuPd = GPIO_PuPd_NOPULL;

     GPIO_Init(GPIOB, &GPIO_InitStructure);

  /*!< Configure the LCD interface */

  RCC_APB1PeriphClockCmd(RCC_APB1Periph_LCD, ENABLE);

  LCD_BlinkConfig(LCD_BlinkMode_Off, LCD_BlinkFrequency_Div8);

  LCD_InitStructure.LCD_Prescaler = LCD_Prescaler_4;

  LCD_InitStructure.LCD_Divider = LCD_Divider_16;

  LCD_InitStructure.LCD_Duty = LCD_Duty_1_4;

}

由於一個com會對應到44 seg，一個com對seg共需要2個32 bit(S00~S43,其餘空白)的大小來存放顯示資料，但LCD圖面只用到4COMx6SEG,因此只須宣告一個32bit變數來對應S00~S31,由於使用了4COM所以必須宣告四個變數如下:

uint32_t LCD_COM0_SEGx = 0;

uint32_t LCD_COM1_SEGx = 0;

uint32_t LCD_COM2_SEGx = 0;

uint32_t LCD_COM3_SEGx = 0;

LCD register map and reset values

#define COMx_S00        0x00000001 << 0

#define COMx_S01        0X00000001 << 1

#define COMx_S02        0X00000001 << 2

#define COMx_S03        0X00000001 << 3

#define COMx_S04        0X00000001 << 4

#define COMx_S05        0X00000001 << 5

#define COM0_S0_S31     0       // COM0-S0~S31

#define COM1_S0_S31     2       // COM1-S0~S31

#define COM2_S0_S31     4       // COM2-S0~S31

#define COM3_S0_S31     6       // COM3-S0~S31

enum

{

     CHAR_0 = 0,

     CHAR_1 = 1,

     CHAR_2 = 2,

     CHAR_3 = 3,

     CHAR_4 = 4,

     CHAR_5 = 5,

     CHAR_6 = 6,

     CHAR_7 = 7,

     CHAR_8 = 8,

     CHAR_9 = 9,

     CHAR_A = 10,

     CHAR_a = 10,

     CHAR_B = 11,

     CHAR_b = 11,

     CHAR_C = 12,

     CHAR_c = 12,

     CHAR_D = 13,

     CHAR_d = 13,

     CHAR_E = 14,

     CHAR_e = 14,

     CHAR_F = 15,

     CHAR_f = 15,

     CHAR_H = 16,

     CHAR_h = 16,

     CHAR_I = 17,

     CHAR_i = 17,

     CHAR_J = 18,

     CHAR_j = 18,

     CHAR_L = 19,

     CHAR_l = 19,

     CHAR_N = 20,

     CHAR_n = 20,

     CHAR_O = 21,

     CHAR_o = 21,

     CHAR_P = 22,

     CHAR_p = 22,

     CHAR_R = 23,

     CHAR_r = 23,

     CHAR_S = 24,

     CHAR_s = 24,

     CHAR_T = 25,

     CHAR_t = 25,

     CHAR_U = 26,

     CHAR_u = 26,

     CHAR_Y = 27,

     CHAR_y = 27,

     CHAR_DESH = 28,

     CHAR_NULL = 29

};

#define DIG1 0

#define DIG2 1

#define DIG3 2

#define DIG4 3

另外我會撰寫LCD的TABLE如下:

// 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, b, C, d, E, F, H, I, J, L, n, O, P, r, S, t, U, Y, -, NULL

const uint8_t LCD_Digit_Table[30] = {0x3F, 0x06, 0x5B, 0x4F, 0x66, 0x6D, 0x7D, 0x07, 0x7F, 0x6F,0x77, 0x7C, 0x39, 0x5E, 0x79, 0x71, 0x76, 0x06, 0x0E, 0x38, 0x54, 0x3F, 0x73, 0x50, 0x6D, 0x78, 0X3e, 0x6E, 0x40, 0x00};

由於TABLE屬於常數資料,因此需宣告為const，另外再寫一個用來顯示控制的七結構變數，

union LCD_Digit

{

    uint8_t Byte;

    struct

    {

        unsigned a : 1;

        unsigned b : 1;

        unsigned c : 1;

        unsigned d : 1;

        unsigned e : 1;

        unsigned f : 1;

        unsigned g : 1;

        unsigned p_v : 1;

    };

}Dig[3] = {0, 0, 0};

void LCD_COM0_SEGx_Update(void)

{

    LCD_COM0_SEGx = 0;

    if(Dig[0].d)

        LCD_COM0_SEGx |= COMx_S00;   // COM0-SEG0

    if(Dig[2].d)

        LCD_COM0_SEGx |= COMx_S02;   // COM0-SEG2

    if(Dig[3].p_v)

        LCD_COM0_SEGx |= COMx_S03;   // COM0-SEG3

    if(Dig[4].d)

        LCD_COM0_SEGx |= COMx_S04;   // COM0-SEG4

    if(Dig[5].p_v)

        LCD_COM0_SEGx |= COMx_S05;   // COM0-SEG5

    return;

}

void LCD_COM1_SEGx_Update(void)

{

    LCD_COM0_SEGx = 0;

    if(Dig[0].e)

        LCD_COM0_SEGx |= COMx_S00;   // COM1-SEG0

    if(Dig[0].c)

        LCD_COM0_SEGx |= COMx_S01;   // COM1-SEG1

    if(Dig[1].e)

        LCD_COM0_SEGx |= COMx_S02;   // COM1-SEG2

    if(Dig[1].c)

        LCD_COM0_SEGx |= COMx_S03;   // COM1-SEG3

    if(Dig[2].e)

        LCD_COM0_SEGx |= COMx_S04;   // COM1-SEG4

    if(Dig[2].c)

        LCD_COM0_SEGx |= COMx_S05;   // COM1-SEG5

    return;

}

void LCD_COM2_SEGx_Update(void)

{

    LCD_COM0_SEGx = 0;

    if(Dig[0].g)

        LCD_COM0_SEGx |= COMx_S00;   // COM2-SEG0

    if(Dig[0].b)

        LCD_COM0_SEGx |= COMx_S01;   // COM2-SEG1

    if(Dig[1].g)

        LCD_COM0_SEGx |= COMx_S02;   // COM2-SEG2

    if(Dig[1].b)

        LCD_COM0_SEGx |= COMx_S03;   // COM2-SEG3

    if(Dig[2].g)

        LCD_COM0_SEGx |= COMx_S04;   // COM2-SEG4

    if(Dig[2].b)

        LCD_COM0_SEGx |= COMx_S05;   // COM2-SEG5

    return;

}

void LCD_COM3_SEGx_Update(void)

{

    LCD_COM0_SEGx = 0;

    if(Dig[0].f)

        LCD_COM0_SEGx |= COMx_S00;   // COM3-SEG0

    if(Dig[0].a)

        LCD_COM0_SEGx |= COMx_S01;   // COM3-SEG1

    if(Dig[1].f)

        LCD_COM0_SEGx |= COMx_S02;   // COM3-SEG2

    if(Dig[1].a)

        LCD_COM0_SEGx |= COMx_S03;   // COM3-SEG3

    if(Dig[2].f)

        LCD_COM0_SEGx |= COMx_S04;   // COM3-SEG4

    if(Dig[2].a)

        LCD_COM0_SEGx |= COMx_S05;   // COM3-SEG5

    return;

}

void LCD_Digit_Display(uint8_t Digit, const unsigned char Table)

{

    switch(Digit)

    {

        case 0 :  Dig[0].Byte = Table; break;

        case 1 :  Dig[1].Byte = Table; break;

        case 2 :  Dig[2].Byte = Table; break;

        case 3 :  Dig[3].Byte = Table; break;

        default : break;

    }

    return;

}

void LCD_Char_Display(const uint8_t *ptr)

{

     uint8_t cnt = 0;

     uint8_t LCD_Digit[4] = {CHAR_NULL, CHAR_NULL, CHAR_NULL, CHAR_NULL};

     while(*ptr != 0x00)

     {

          switch(*ptr)

          {

              case '0':

                   LCD_Digit[cnt] = CHAR_0; break;

              case '1':

                   LCD_Digit[cnt] = CHAR_1; break;

              case '2':

                   LCD_Digit[cnt] = CHAR_2; break;

              case '3':

                   LCD_Digit[cnt] = CHAR_3; break;

              case '4':

                   LCD_Digit[cnt] = CHAR_4; break;

              case '5':

                   LCD_Digit[cnt] = CHAR_5; break;

              case '6':

                   LCD_Digit[cnt] = CHAR_6; break;

              case '7':

                   LCD_Digit[cnt] = CHAR_7; break;

              case '8':

                   LCD_Digit[cnt] = CHAR_8; break;

              case '9':

                   LCD_Digit[cnt] = CHAR_9; break;

              case 'A':

                   case 'a': LCD_Digit[cnt] = CHAR_A; break;

              case 'B':

                   case 'b': LCD_Digit[cnt] = CHAR_B; break;

              case 'C':

                   case 'c': LCD_Digit[cnt] = CHAR_C; break;

              case 'D':

                   case 'd': LCD_Digit[cnt] = CHAR_D; break;

              case 'E':

                   case 'e': LCD_Digit[cnt] = CHAR_E; break;

              case 'F':

                   case 'f': LCD_Digit[cnt] = CHAR_F; break;

              case 'H':

                   case 'h': LCD_Digit[cnt] = CHAR_H; break;

              case 'I':

                   case 'i': LCD_Digit[cnt] = CHAR_I; break;

              case 'J':

                   case 'j': LCD_Digit[cnt] = CHAR_J; break;

              case 'L':

                   case 'l': LCD_Digit[cnt] = CHAR_L; break;

              case 'N':

                   case 'n': LCD_Digit[cnt] = CHAR_N; break;

              case 'O':

                   case 'o': LCD_Digit[cnt] = CHAR_O; break;

              case 'P':

                   case 'p': LCD_Digit[cnt] = CHAR_P; break;

              case 'R':

                   case 'r': LCD_Digit[cnt] = CHAR_R; break;

              case 'S':

                   case 's': LCD_Digit[cnt] = CHAR_S; break;

              case 'T':

                   case 't': LCD_Digit[cnt] = CHAR_T; break;

              case 'U':

                   case 'u': LCD_Digit[cnt] = CHAR_U; break;

              case 'Y':

                   case 'y': LCD_Digit[cnt] = CHAR_Y; break;

              case '-': LCD_Digit[cnt] = CHAR_DESH;  break;

              default : LCD_Digit[cnt] = CHAR_NULL;  break;

          }

          ptr++;

          cnt++;

     }

     LCD_Digit_Display(DIG1, LCD_Digit_Table[LCD_Digit[0]]);

     LCD_Digit_Display(DIG2, LCD_Digit_Table[LCD_Digit[1]]);

     LCD_Digit_Display(DIG3, LCD_Digit_Table[LCD_Digit[2]]);

     LCD_Digit_Display(DIG4, LCD_Digit_Table[LCD_Digit[3]]);

     }

}

void LCD_Integer_Display(int16_t Number)

{

    uint8_t LCD_Digit[3] = {CHAR_NULL, CHAR_NULL, CHAR_NULL, CHAR_NULL};



    LCD_Digit[0] = Number / 100;

    LCD_Digit[1] = (Number / 10) % 10;

    LCD_Digit[2] = Number  % 10;



    if(LCD_Digit[0] == 0)

    {

        LCD_Digit[0] = CHAR_NULL;

    }

    else

        LeadZero = 0;

     LCD_Digit_Display(DIG1, LCD_Digit_Table[LCD_Digit[0]]);

     LCD_Digit_Display(DIG2, LCD_Digit_Table[LCD_Digit[1]]);

     LCD_Digit_Display(DIG3, LCD_Digit_Table[LCD_Digit[2]]);

     LCD_Digit_Display(DIG4, LCD_Digit_Table[LCD_Digit[3]]);

}

void LCD_Handler(void)

{

    LCD_COM0_SEGx_Update();

    LCD_COM1_SEGx_Update();

    LCD_COM2_SEGx_Update();

    LCD_COM3_SEGx_Update();



    LCD_Write(LCD_RAMRegister_0, LCD_COM0_SEGx);     // COM0SEG0~COM0SEG43

    LCD_Write(LCD_RAMRegister_2, LCD_COM1_SEGx);     // COM1SEG0~COM1SEG43

    LCD_Write(LCD_RAMRegister_4, LCD_COM2_SEGx);     // COM2SEG0~COM2SEG43

    LCD_Write(LCD_RAMRegister_6, LCD_COM3_SEGx);     // COM3SEG0~COM3SEG43

    LCD_UpdateDisplayRequest();



  /* Wait until the update display is finished */

  while(LCD_GetFlagStatus(LCD_FLAG_UDD) == RESET)

  {}

}

假設要顯示12.0V，請先將12.0放大10倍成120，然後套用以下程式，

LCD_Integer_Display(120);

Dig[DIG2].p_v = 1; // “.”

Dig[DIG3].p_v = 1; // “V”

Intel 8080-like and Motorola 6800-like interfaces的LCD控制介面

近日由於要開發某測試器,使用COG LCD display,因此寫個筆記,後續自己用STM32寫driver來控制吧!

目前選用的COG LCD使用Sitronix的ST7565P控制器,有三個控制LCD的介面可以讓MCU來讀寫,分別為6800/8080/SPI-4,由於SPI-4為串列介面,必須為8bit依序傳送,雖然LCD更新顯示不需要太快,但拖太久也不好,假設SPI跑1MHz,猜測送完1byte至少花10us以上,以我選擇的COG LCD為128X64,總共有8 pages的顯示資料,每個page有128 bytes,總共需要1024 bytes,若使用SPI更新全畫面需要10ms,基於耗電考量,改使用Parallel介面來控制,速度就快多了!

在COG或其它點矩陣的LCD常用介面為6800 or 8080介面,簡單來說就是8bit(D7~D0)資料寬度的並列介面,並用3個控制RS. E. R/W(6800)或RS. RD. RW(8080)來控制讀寫資料或讀寫Instruction,
下圖為參考ST AN2790 Table 2的資料,

ST7565P datasheet裡面有些不一樣的地方是RS pin命名為A0, A0 = 0 for instruction read or wirte; A0 = 1 for data read or write,其他兩個控制pin分別為RD(E)及RW(R/W),兩個pin讓6800與8080共用,選擇6800則使用E(Enable = 1)及RW(Read = 1, Write = 0);選擇8080則使用RD及RW,兩者皆為Low active

簡單來說6800與8080之間的差異在於控制這兩pin的方式, 6800使用E(Enable)及R/W控制,讀寫時E須為1,且以R/W來區分Read(1) or Write(0); 而8080則使用RD及RW控制讀或寫,但沒有Enable控制,請注意觀察上表的控制pin可能會有上標線,代表是Low active,由於這邊文字無法打成上標線,因此須注意一下!

以我本人來說,覺得6800比較直觀,用R/W控制讀或寫,且用Enable控制是否要寫入

// 6800 Interface

void Write_data(unsigned char data)

{

         LCM_RS = 1;              // 將寫入LCD DDRAM

         LCM_RW = 0;             // Writes display data ram

         LCM_PORT=data;     // 將資料寫入8bit寬度的bus

         LCM_ENABLE = 1;    // Enable write

         _nop_();                       // wait for lcd controller data latch

         LCM_ENABLE = 0;    // Disable write

}

void Write_command(unsigned char command)

{

       LCM_RS = 0;                     // 將寫入instruction register

       LCM_RW = 0;                    // Writes instruction register

       LCM_PORT = command;   // 將command寫入8bit寬度的bus

       LCM_ENABLE = 1;          // Enable write

       _nop_();                             // wait for lcd controller data latch

       LCM_ENABLE = 0;          // Disable write

}

上面兩個副程式分別用來寫入DDRAM或Instruction,只要有這兩個基本概念,再將兩個副程式用來應用設計就可以成為initialize LCD的程式及寫入圖形的程式,LCD的dot matrix,就可以顯示圖形了!
